Controllers/Drivers
Step Motor Controller/CC-Link Direct Input Type LECPMJ
 | ・CC-Link Ver. 1.10 compatible ・External data import function ・Position and speed can be monitored by the PLC touch pan |
| Type | Series | Compatible motor | Power supply voltage | Field bus |
|---|---|---|---|---|
| CC-Link direct input type | LECPMJ | Step motor (Servo/24 VDC) | 24 VDC ±10% | CC-Link Ver.1.10 |
■CC-Link Ver. 1.10 compliant
■External data import function

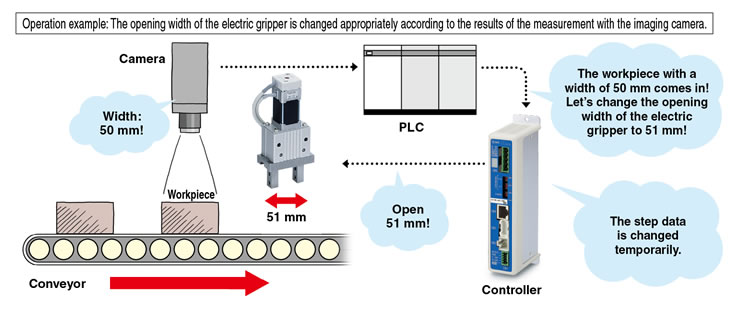

■External data import function
- The step data can be rewrite temporarily by feeding back external information to the PLC.
- 64 or more data points can be defined with the 3 types of data import modes.

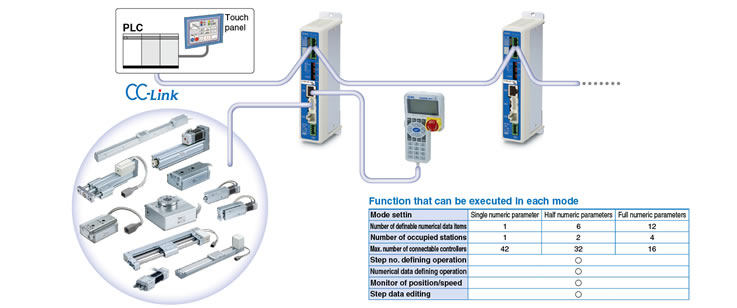

- 3 types of data import modes
(1)Single numeric parameter (Number of occupied stations: 1): Movement MOD (movement mode) and another parameter item are changed.
(2)Half numeric parameters (Number of occupied stations: 2): Up to 6 parameter items are changed at once.
(3)Full numeric parameters (Number of occupied stations: 4): Up to 12 parameter items are changed at once.
■Position and speed can be monitored by the PLC touch panel (display).
■Step data can be edited from the PLC touch panel (display).
(Except in the case of the single numeric parameter)
■Step data can be edited from the PLC touch panel (display).
(Except in the case of the single numeric parameter)
Step Motor Controller/CC-Link Direct Input Type LECPMJ
- Product Code: LECPMJ Step Motor Controller/CC-Link Direct Input Type
- Availability: In Stock
Tags: Step Motor Controller/CC-Link Direct Input Type LECPMJ
